A door trim panel mold lives or dies on two numbers: how many lifters the part needs, and how much material sits behind each of them. Everything else — cavity count, steel grade, hot runner drops — follows. In 2026 a single-cavity tool for an 800 mm-class panel runs 35,000–60,000** from a qualified China mold supplier; a two-cavity family tool with four side actions passes **120,000. This automotive interior door trim panel injection mold design guide breaks the part down the way a toolmaker actually quotes it: geometry, lifter architecture, sink risk, and the line items that move the price. Jusheng builds tools of this size in Ningbo on 5-axis gantry machines.
1. What Does a Door Trim Panel Mold Have to Solve That a Bumper Mold Doesn't?
A door panel is not a big flat part — it is a thin cosmetic skin wrapped around 10 to 15 undercuts, and every one has to release without dragging the grain. A bumper is one shell with two or three sliders; a door panel carries clip towers, heat-stake bosses, armrest structure, a speaker grille and a map pocket inside a 2.5 mm wall. That density is why this automotive interior door trim panel injection mold design guide spends its first half on lifters, not on steel. It is also the point where the door panel diverges from the rest of the Automobile Molds family — the tooling logic is shared, but the undercut count is not.

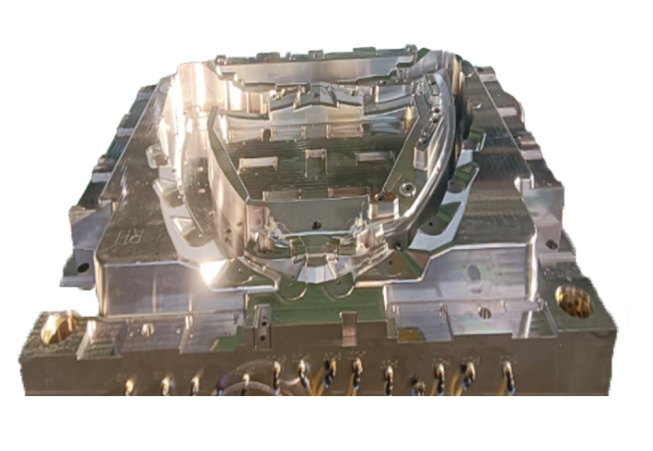

The reference geometry
A C-segment rear door trim panel comes in at roughly 813 × 716 × 125 mm, 2.5 mm nominal wall, PP+T20, 1.1% shrinkage. That decides three things.
The press. Projected area is about 5,820 cm². At 450 kg/cm² cavity pressure the clamp requirement is roughly 2,600 t before safety factor, so you need a 2,500–3,500 t machine. Door panels do not go to small shops, and that alone filters your supplier list.
The steel. An 800 × 700 mm envelope with deep core pockets needs a plate that holds flatness through heat treatment: P20 at 28–32 HRC for most programs, H13 when grain is deep.
The gating. Three drops on a sequential valve gate hot runner is normal. Two leave a weld line across the armrest; four add cost without fixing what the third did not. This is the same gating discipline that separates good Automobile Molds from merely adequate ones — the drop count is set by the part, not by the press tonnage available.

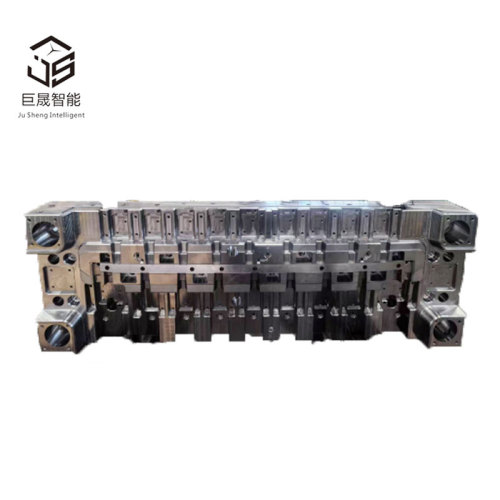

Lifter architecture: 13 is normal, and each one is a cost line
Clip undercuts are the reason: a typical panel needs 13 lifters — six clip-type, two large ones carrying the armrest and map pocket.
Ø25 mm angled ejector rod, Ø20 mm where space is tight
35 × 35 mm lifter head, Ø20 mm rod end into the insert (Ø16 mm minimum), two Ø6 mm dowel pins
A 20 mm clip undercut needs 23–25 mm of core pull — under-pull and you drag the clip edge
Back slope 2° beyond the rod angle, or the lifter binds on return
Two details separate a working tool from a complaining one. Ejector blocks at Ø12 and Ø16 mm beat pins on a panel this size, because pins read through texture. And any large lifter needs its own cooling circuit at the bottom of the housing — an uncooled lifter runs hot, grows, and marks the part it is meant to release. That is the first thing Jusheng checks on an incoming design.
Why the B-Side Lifter Prints a Sink Mark on the Show Surface
The door panel injection mold B side lifter sink mark starts with section thickness, not with packing pressure. A lifter pad sits on the non-cosmetic side, usually where the clip tower and its ribs already concentrate material. Wall, rib and lifter pad stack in one place; that junction cools last and pulls the grain down on the A surface. Holding pressure cannot recover it once the gate freezes.
The numbers that prevent it are old and still ignored:
Rib thickness at 50–60% of nominal wall. At 2.5 mm that is 1.2–1.5 mm; above 70% the sink shows under raking light.
Boss wall at 60% of nominal, outside diameter no more than 2× the mating screw diameter, bore cored out.
A 3:1 taper on any wall change, and R ≥ 0.5T at internal corners for unfilled PP (0.75T once you add glass).

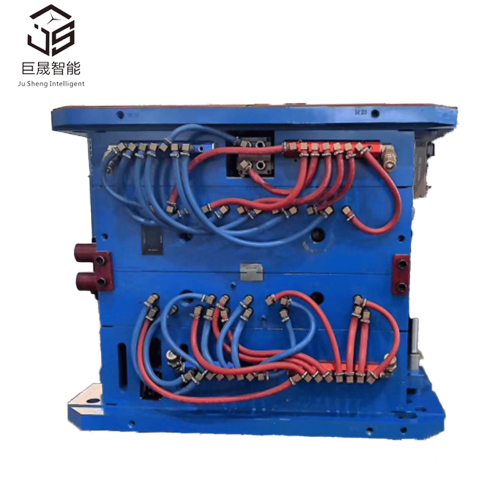

A dedicated cooling line in the lifter housing, and ejector sleeves with cooling beside heat-stake bosses.
A medium-to-deep texture (VDI 21–27) hides a 0.05–0.10 mm depression — camouflage, not repair. In practice the door panel injection mold B side lifter sink mark conflict is settled on the drawing, months before the steel is cut.
✅ Bottom line: Count the undercuts before you discuss price — lifter count and the wall stock behind each lifter decide most of a door panel tool's cost and nearly all of its cosmetic risk.
2. How Much Does a Door Trim Panel Mold Cost in China — and Where Does the Money Go?
An 800 mm-class single-cavity door panel tool with a 3-drop sequential valve gate costs $35,000–60,000 in 2026; a two-cavity left/right family tool with four side actions runs $90,000–140,000. When buyers ask how much does a door trim panel mold cost in China, the honest answer is a range, because the spread comes from lifters and hot runner drops rather than part size.
Line item
Share of tool cost
What actually moves it
Mold base and steel (P20 28–32 HRC / 718H / H13 43–52 HRC)
15–30%
Plate size for an 800 × 700 mm envelope, heat-treat volume
Core and cavity machining
15–25%
Class-A surface, 5-axis work in deep pockets
Lifters and side actions
5–25%
13 lifters is normal; each adds machining, fitting, tryout hours
Hot runner
10–25%
Three valve-gate drops versus thermal gates
Cooling, including lifter circuits
5–15%
Dedicated lifter cooling, baffles, leak test
Texture, grain and polish
5–18%
VDI grade, grain depth, polish to SPI standard
Tryout, T1–T2, CMM, documentation
8–20%
Number of trial and change rounds
Where cheap quotes hide the difference
Carry one rule into every negotiation: if a Chinese quote sits more than 40% below the next-lowest, something is wrong. Either the spec was not understood, the steel will be substituted, or the shop is buying the business and will recover it through change orders. On a door panel the substitutions are quiet — one hydraulic core pull where you specified two, a thermal gate relabelled as a valve gate, no cooling in the large lifter, two trial rounds where the part needs four.
Tool price is not the number that decides the program
Run the piece price before signing — the answer to how much does a door trim panel mold cost in China only matters beside it. In a published benchmark for a PP-GF20 door panel carrier at 180,000 units a year, delivered cost was $3.95/piece from China, $4.07 from Mexico and $5.63 from the US — and the Chinese cell ran a 48-second cycle against 65 seconds elsewhere. A $15,000 tooling saving disappears in two months at that volume; a badly cooled tool charges you for the life of the program. Jusheng runs custom tooling and the moulding trial on one site, the only way to see that number before you commit.
✅ Bottom line: Compare door panel quotes on lifter count, lifter cooling and trial rounds, not on the headline tool price.
FAQ
Q: How long does a door trim panel mold take to build and validate?
A: 16–22 weeks: 5–6 weeks of design and DFM, 9–11 weeks of machining and fitting, T1 at week 14–16, then two to three weeks to T2. Anyone quoting eight weeks means machining only. Add four weeks if grain is etched after T1 rather than before — etch before T1 when the drawing allows, because grain changes the draft requirement.
Q: Can one mold run both left and right door panels?
A: Yes, as a two-cavity family tool, usually right above 150,000 pairs a year: 60–80% more tool cost than a single cavity, but 30–35% lower piece price. The catch is filling balance — left and right panels are mirror images with different clip layouts, so the runner must be balanced by simulation, not by symmetric layout. Any automotive interior door trim panel injection mold design guide that treats a family tool as two copies of one cavity is skipping the hard part.
Q: Do you offer OEM and custom door panel tooling from China?
A: Yes. Zhejiang Jusheng Intelligent Technology Co., Ltd. builds custom interior and exterior automotive moulds in Ningbo — 50,000 m² across four workshops, 200+ machines including 5-axis gantry machining centres and CMM inspection, with in-house tryout. We supply OEM programs and Tier 1 suppliers with tooling plus PPAP documentation, and we quote lifter count and cooling architecture line by line rather than as a lump sum. Jusheng covers single-cavity tools through family tools with four side actions.
Send Your Part Data, Get a Lifter-by-Lifter Quote
Send a 3D file, material grade, annual volume and Class-A requirement. Jusheng returns a DFM report in five working days covering undercut count, lifter and slider layout, gate positions, predicted sink and weld-line locations including door panel injection mold B side lifter sink mark risk, plus a line-item cost breakdown — the table above, filled in with your numbers. Request OEM/ODM pricing from our China factory and we will include a T1-to-SOP schedule.
